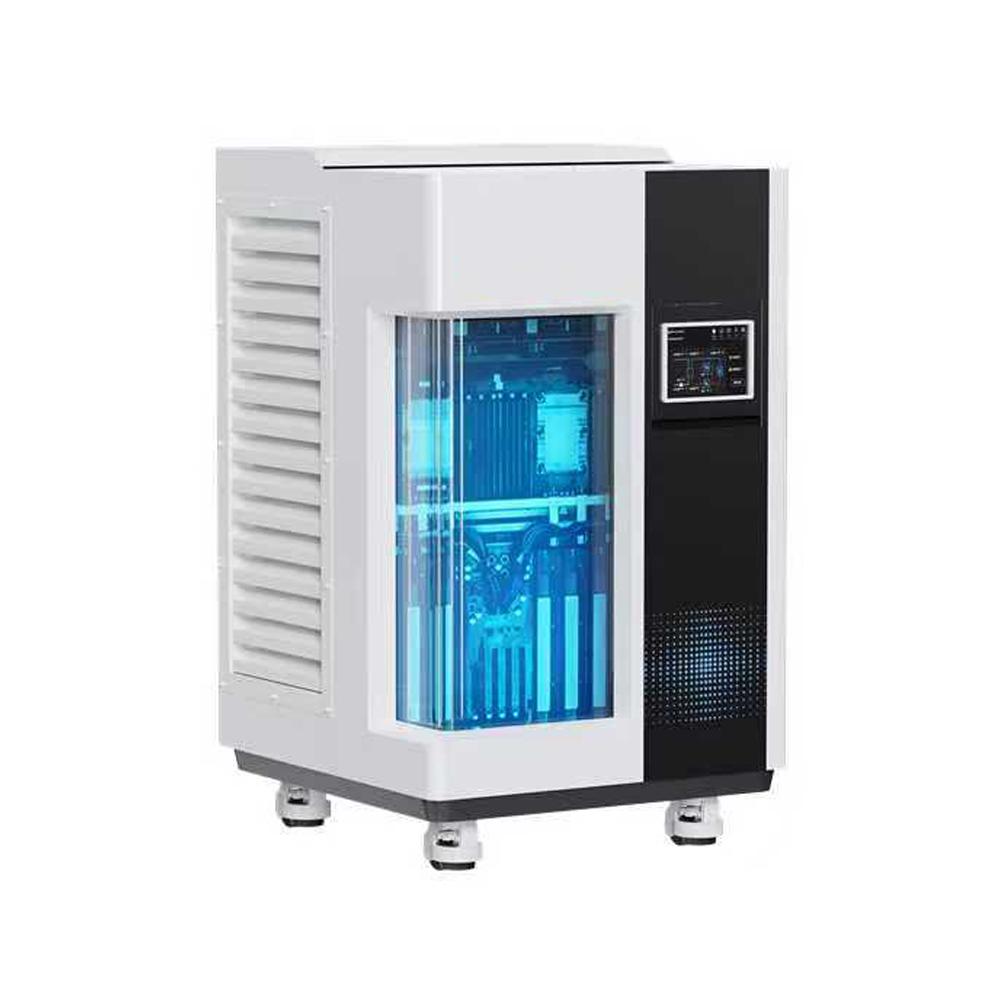

Server Immersion Liquid Cooling Cabinet
Shenglin Cooling is one of the toppest Immersion Cooling Cabinet,Liquid Cooling Cabinet in China.During these years of exporting , Shenglin Cooling now has rich experience in the worldwide markets
  • Informations
  • Technical Specifications

Introduction

This product integrates cooling, IT computing, and software into one unit. It can be directly deployed in an office environment without the need to build a dedicated server room. Customizable based on customer requirements, it supports data computing, storage, and backup once connected to the network. It helps small and medium-sized enterprises overcome the long and complex process of traditional data center infrastructure construction.


Advantages

·  No need for server room renovation

·  Fast installation and deployment


Application

Scientific research and educational institutions, enterprise branch offices, small and startup businesses, government and public institutions, edge computing, video rendering, data interaction, gaming, and animation industries.


Technical Advantages

(1)High Performance
Delivers powerful computing capability for various workloads.

(2)High Reliability
Enhanced IT equipment reliability — improved by over 50%.

(3)Long Service Life
Durable system design with a lifespan of over 10 years.

(4)Silent Operation
Noise level reduced to 52 dB(A), suitable for office environments.

(5)Resource Efficiency
Significantly improves equipment utilization.

(6)Easy Maintenance
Automated monitoring and simple operation & maintenance.

(7)Energy Saving
Up to 30% reduction in power consumption.

(8)Wide Application Range
Adaptable to various deployment environments.

Item Unit Data / Description
Model
Capacity U 8
Cooling Capacity kW 6
Cabinet Weight kg ≈150
Total Weight kg ≈350
Cabinet Dimensions mm 600 × 1200 × 1300
Power Consumption kW 0.7
Power Supply V AC220
Cabinet Material Carbon Steel
Compatibility Compatible with 1U–8U standard 19-inch servers
Operating Temperature -20 ~ 50
Protection Level IP55
Cooling Method Immersion liquid cooling inside cabinet
Installation Method Indoor floor-standing installation
Notes Storage devices should use SSDs or helium-filled HDDs
Minimum Room Height m ≥3.0
Floor Load Requirement kN/m² ≥6
