Introduction
· The tank area is enlarged to support various Antminers such as S21, S21 XP, S21 Pro, S21xp Imm, and DG1+. It is insulated and equipped with air conditioning for operator comfort.

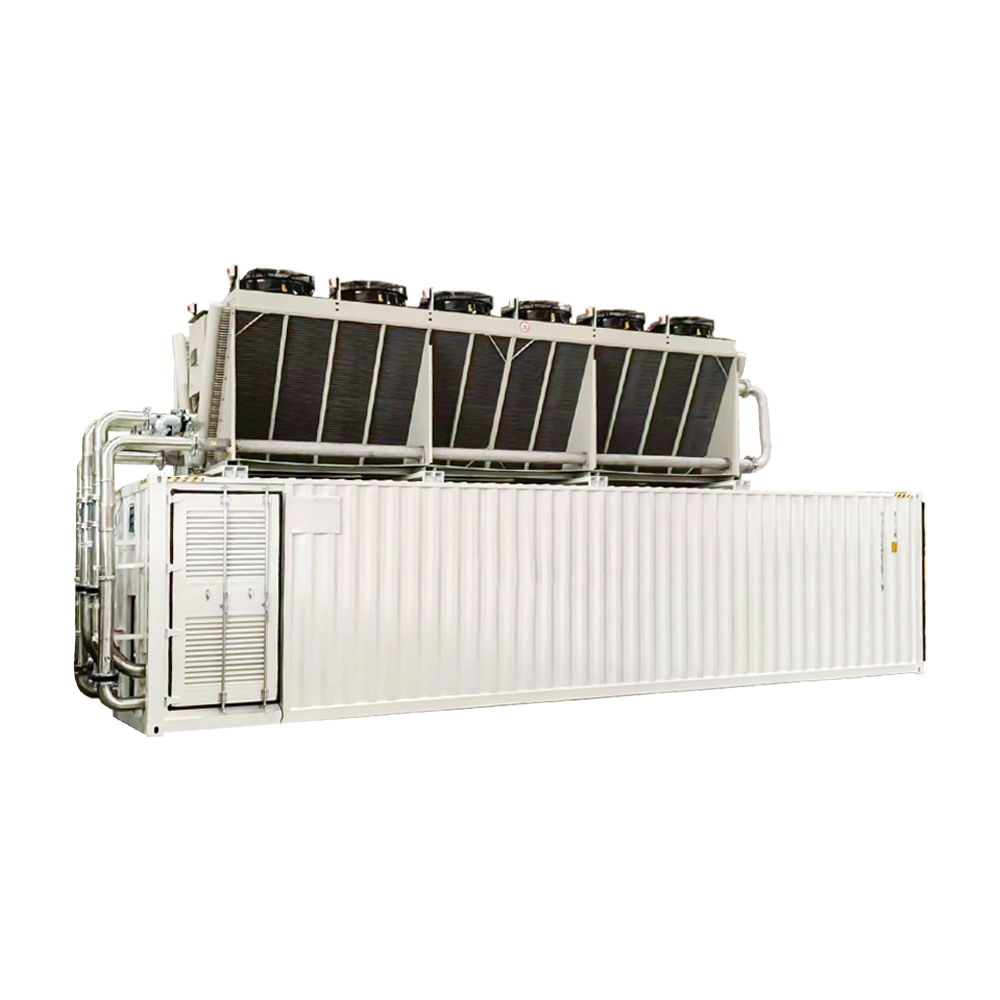

· The dry cooler is separate from the 40-foot container and can be installed horizontally or stacked as needed.
· The system combines an immersion cooling tank and a CDU, connected to the dry cooler via external piping.
· Power, distribution, monitoring, lighting, and ventilation systems are all integrated into the prefabricated, factory-tested container.
|
Brief |
|
|
Dimension |
40HQ40'x8'x8'6"（LxWxH） |
|
Total Capacity |
1MW |
|
Miner Quantity |
160xS21 Imm |
|
Inlet and Outlet Temperature |
45℃/55℃ |
|
Tank Quantity |
8 |
|
Capacity Per Tank |
20x S21 Imm |
|
Cooling Fhuid |
Shell S3X,Shell S5X |
|
Oil Pump |
|
|
Brand |
Grundfos |
|
Quantity |
Two |
|
Flow Rate and Lift |
100m3/h,△P=400kPa |
|
Motor |
UL,22kW |
|
Power |
|
|
Input Voltage/Frequency |
3*380V/50Hz |
|
Output Voltage/Frequency |
|
|
Max.Power Supply |
1100kW |
|
Max.Server Load |
1000kW |
|
Power Distribution Cabinets Current |
1x2000 A |
|
Frame Circuit Breaker |
Noark Ex9A25Q3P2000AF 65kAC |
|
Secondary Circuit Breaker |
Noark Ex9A25Q3P2000AF 65kAC |
|
PDU |
|
|
Quantity |
8 |
|
Mini-Circuit Breaker |
Noark Ex9BH3P C2010kAC |
|
Circuit Breaker Certification |
CE |
|
Internet&System |
|
|
External Connector |
TP-Link TL-SG2216 Managed Switch |
|
Environment |
|
|
Ambient Outdoor Operating Temperature |
-25~40℃ |
|
Ambient Outdoor Operating Humidity |
<95% |
|
Indoor Noise Level |
<75dB(A) |
|
Control Cabinet |
|
|
PLC |
Siemens S7-200 SMART ST60 |
|
VFD |
Two,Noark EX9VF6-0220-CT43 |
