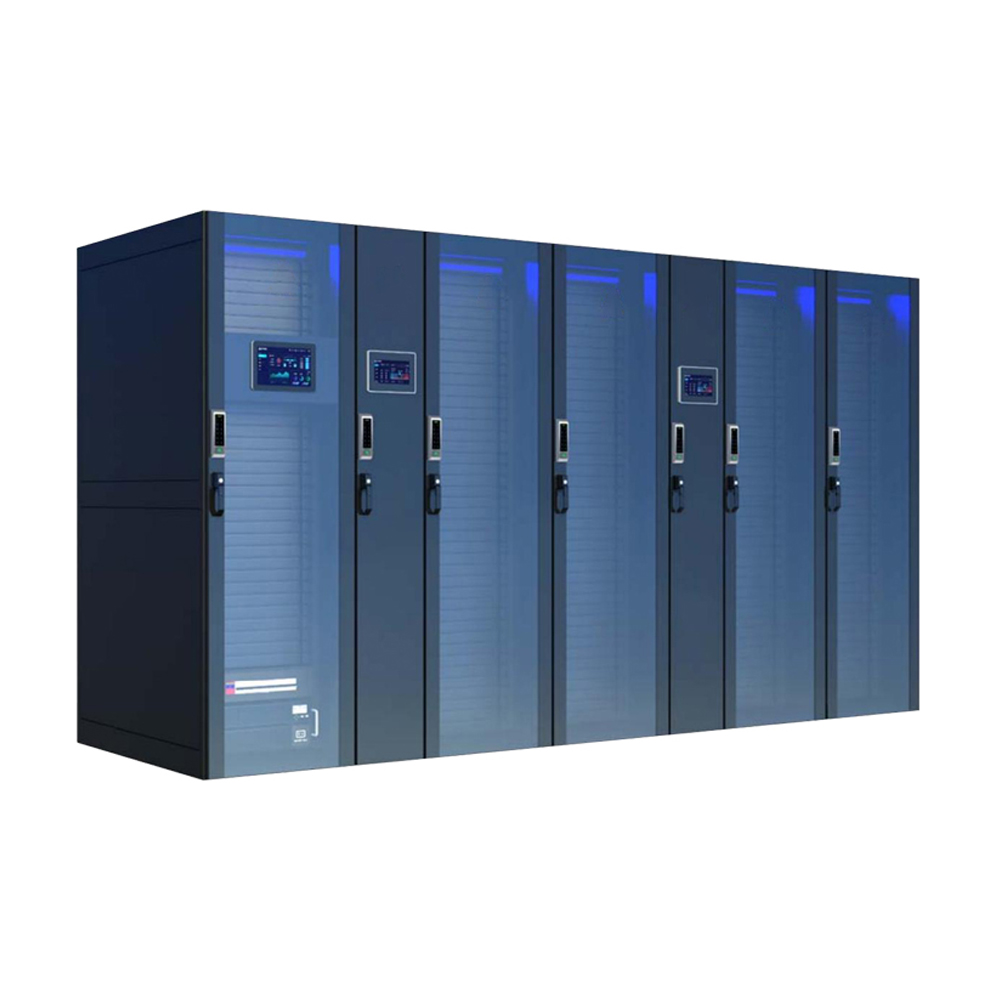

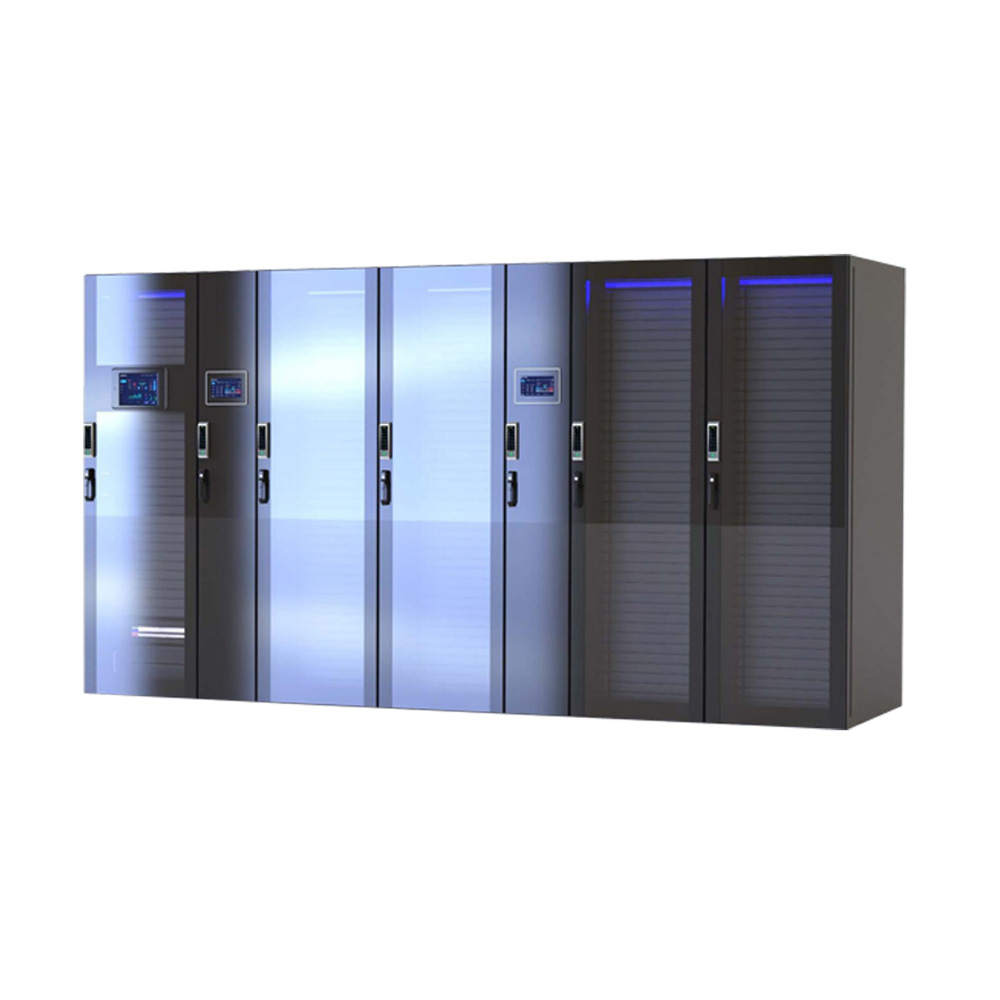

This system is a micro-module data center, integrating server rack systems, enclosed aisle systems, precision air conditioning, UPS power distribution systems, environmental monitoring systems, security systems, and more. With a fully modular architecture, it can be flexibly configured according to customer requirements (such as power density, number of IT devices, reliability level, PUE metrics, etc.), providing excellent infrastructure support for IT equipment.
| Technical Specifications Table | ||||||
| Model | 6T | 10T | 20T | 20S | 30S | Customization |
| Cabinets | 1 | 3 | 5 | 5 | 7 | ≤20 |
|
Power Density -kw/unit |
3 | 3 | 3 | 4 | 4 | ≤20kw/unit |
| Redundancy Type | N | N | N | N | N+1 | N/N+1/2N |
| Depth-mm | 1200 | 1200 | 1200 | 1200 | 1200 | Customizable to 1400 |
| Width-mm | 600 | 600 | 600 | 600 | 600 | Optional 800 |
| Height-mm | 2000 | 2000 | 2000 | 2000 | 2000 | Customizable to 2200 -47U |
| Power System | ||||||
| UPS -kVA | 6 | 10 | 20 | 20 | 30+30 | 3~200 |
| Total Input Power Specification |
63A/1P 220V~50Hz |
63A/3P 380V~50Hz |
63A/3P 380V~50Hz |
100A/3P 380V~50Hz |
100A/3P 380V~50Hz |
Customizable |
| Cooling System | ||||||
| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling/Liquid Cooling |
| Cooling Capacity-kW | 3.5 | 7.5 | 7.5+7.5 | 21.2 | 25+25 | 3.5~65 |
| Cooling Type | Rack-mounted | Rack-mounted | Rack-mounted | Row-level | Row-level |
Rack-mounted /Row-level |
| Management System | ||||||
| Environmental Monitoring System | UPS, Power Distribution, Precision Air Conditioning, 10-inch Touchscreen, Temperature & Humidity, Smoke Detection, Water Leakage, Door Contact | Optional: Audio-Visual/ SMS Alerts, App, Centralized Monitoring, etc. | ||||
| Security System | Four-in-One Access Control System | Optional: Video Surveillance, Fire Protection | ||||
（1）Air Conditioning System
· Rack-mounted Split Unit: 3.5kW, 7.5kW, 12.5kW
· Rack-mounted Integrated Unit: 3.5kW, 5kW
· Row-Level Units: 12.8kW, 21.2kW, 25.1kW, 31.1kW, 40.9kW, 51.2kW, 65.7kW
（2）Cabinet System
· Cabinet Dimensions: Width: 600/800mm; Depth: 1200mm; Height: 2000mm
· Cabinet Access Control: Four-in-One Smart Access Control (Fingerprint + Password + ID Card + Mechanical Lock)
· Other Accessories: Ambient Lighting, Lighting, 1U Blank Panel, Shelf, L-shaped Rails, Cable Management Rack, Cable Ties, Top Cable Tray, IP55 Adaptation Components, etc.
（3）UPS Power Supply System
· UPS: Rack-mounted: 3~60kVA
· Modular UPS: 15~200kVA
· Batteries: Lead-acid Batteries, Lithium Batteries
· Power Distribution Module: Rack-mounted design, supports custom configurations, includes surge protection, monitoring
（4）Monitoring and Security
· Monitoring Sensors: Temperature & Humidity, Smoke Detection, Water Leakage, Door Contact, Audio-Visual Alarms, SMS Alerts, Mobile App, Centralized Monitoring System
· Video Surveillance: Cameras, NVRs, and Hard Drives
· Fire Protection: Rack-mounted Gas Fire Extinguishing System
